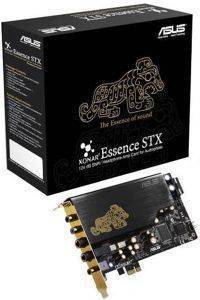

ASUS XONAR ESSENCE STX
(134011598)
Η XONAR ESSENCE STX της ASUS προσφέρει απαράμιλλα χαρακτηριστικά και υψηλής ποιότητας ηχητική απόδοση. Υποστηρίζοντας High Definition Audio μέχρι 192KHz/24Bit Sampling Rates και 118db Audio Quality μπορεί να χρησιμοποιηθεί ακόμη και για επαγγελματικούς σκοπούς.
Audio Performance:
Output Signal-to-Noise Ratio (A-Weighted): 124dB for Front-out,117dB for Headphone-out (600ohms) dB.
Input Signal-to-Noise Ratio (A-Weighted): 118 dB.
Output THD+N at 1kHz: 0.0003% (-110dB) for Front-out, 0.001% (-100dB) for Headphone-out.
Input THD+N at 1kHz: 0.0002% (-113dB) for Line-in.
Frequency Response (-3dB, 24-bit/96kHz input): < 10Hz to 90kHz.
Output/Input Full-Scale Voltage 2 Vrms (5.65 Vp-p).
Main Chipset:
Audio Processor: ASUS AV100 High-Definition Sound Processor (Max. 192KHz/24bit).
24-bit D-A Converter of Digital Sources: Texas Instruments PCM1792A *1 for Front-Out (127dB SNR, Max. 192kHz/24bit).
24-bit A-D Converter for Analog Inputs: Cirrus-Logic CS5381* 1 (120dB SNR, Max. 192kHz/24bit).
High Fidelity Headphone Amplifier: Texas Instruments 6120A2*1 (120dB SNR, 100dB THD+N @ Vcc±12V, RL=600Ω, f=1kHz).
Sample Rate and Resolution:
Analog Playback Sample Rate and Resolution: 44.1K/48K/96K/192KHz -16/24bit.
Analog Recording Sample Rate and Resolution: 44.1K/48K/96K/192KHz - 16/24bit.
S/PDIF Digital Output: 44.1K/48K/96K/192KHz 16/24bit, Dolby Digital.
ASIO 2.0 Driver Support: 44.1K/48K/96K/192KHz 16/24bit with very low latency.
I/O Ports:
Analog Output Jack: RCA jack *2 (Front R / Front L), 6.30mm jack *1 (Headphone out).
Analog Input Jack: 6.30mm jack *1 (Shared by Line-In/Mic-In).
Other line-level analog input (for CD-IN/TV Tuner): Aux-In (4-pin header on the card).
Digital S/PDIF Output: Coaxial and High-bandwidth Optical Combo Connector, Supports 192KHz/24bit.
Front-Panel Header: Shared by Headphone out / 2 channels out / Microphone in S/PDIF Header: Connects to compatiable graphic cards for HDMI output.
Driver Features:
Operation System: Windows Vista/XP(32/64bit)/MCE2005.
Dolby Technologies: Dolby Headphone, Dolby Virtual Speaker, Dolby Pro-Logic IIx, Dolby Digital Live.
Smart Volume Normalizer: Normalizes the volume of all audio sources into a constant level.
Xear 3D Virtual Speaker Shifter: Virtual 7.1 speaker positioning.
Magic Voice: Modifies the sound of your voice, for VOIP and online chat applications (Windows XP).
Karaoke Functions: Music Key-Shifting and Microphone Echo effects (Windows XP).
FlexBass: Professional Bass Management/Enhancement system.
Other Effects: 10-band Equalier/27 Environment Effects.
3D Sound Engines/APIs: Vista: DirectSound3D GX 2.5, DirectSound HW, DirectSound SW, A3D 1.0, OpenAL generic modes, 128 3D sounds processing capability, XP: DirectSound2.5 SW, A3D 1.0, OpenAL generic modes, 128 3D sounds processing capability.
Τοποθέτηση: PCI Express
